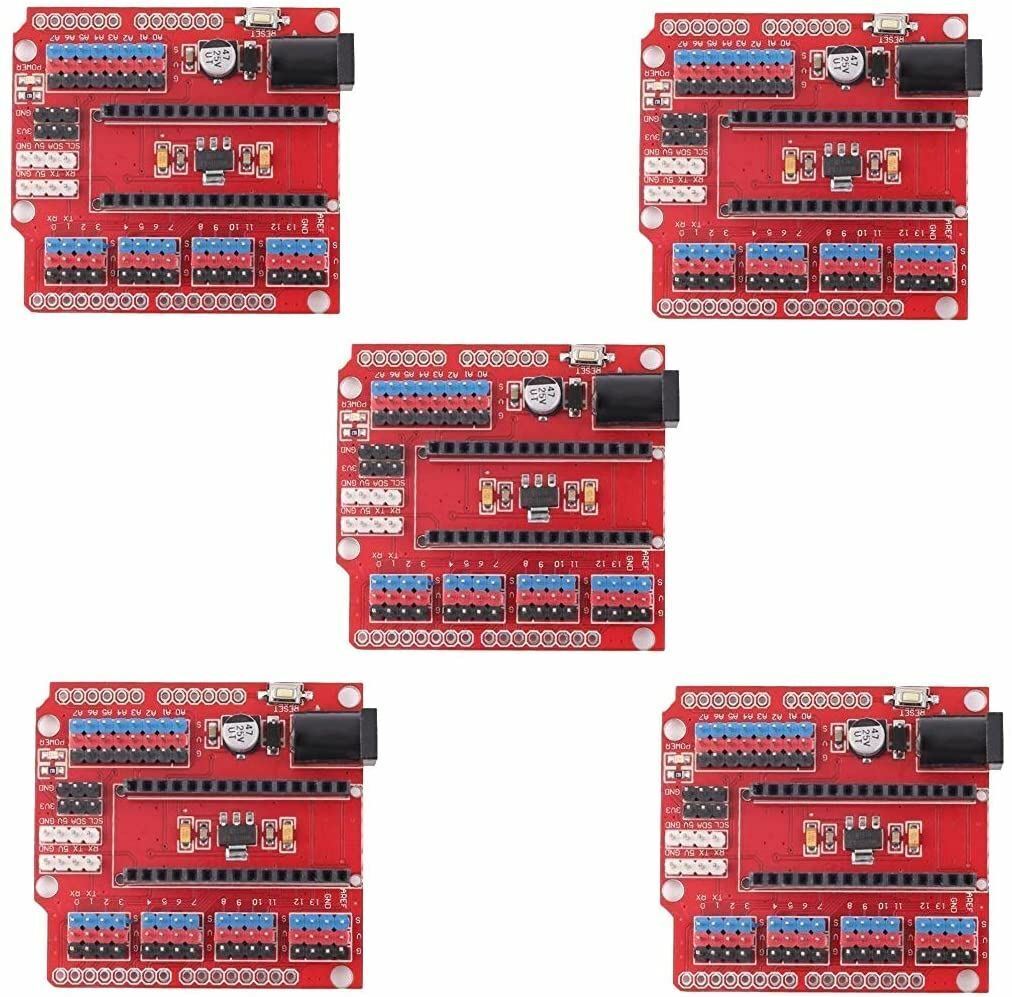

5X Arduino R1 Nano 3.0 Duemilanove 2009 Nano I/O Expansion Sensor Shield
$17.90
Brand: Charming Terrain
Type: Motherboard
-

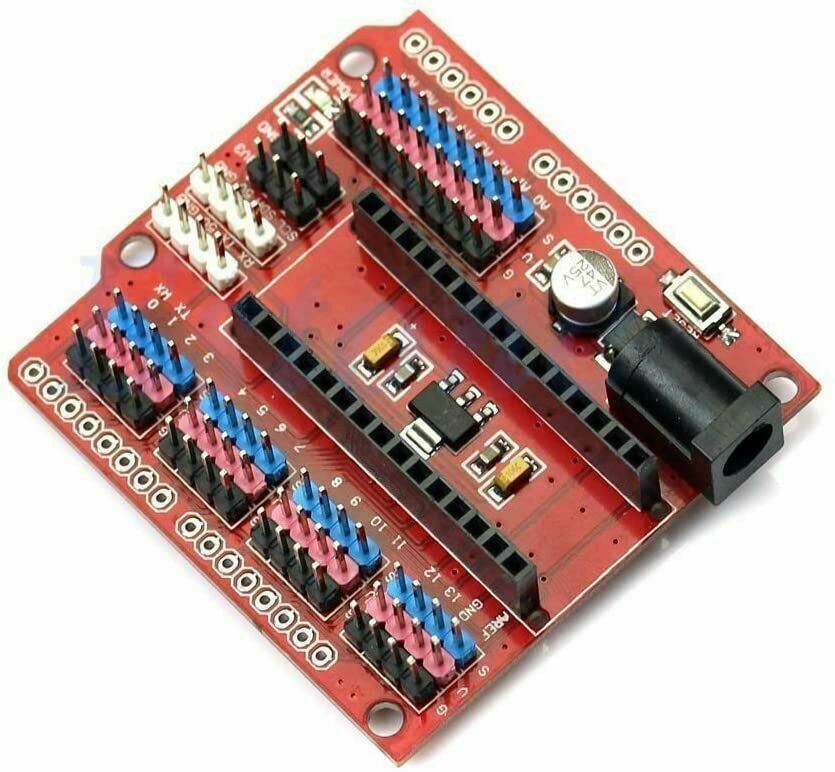

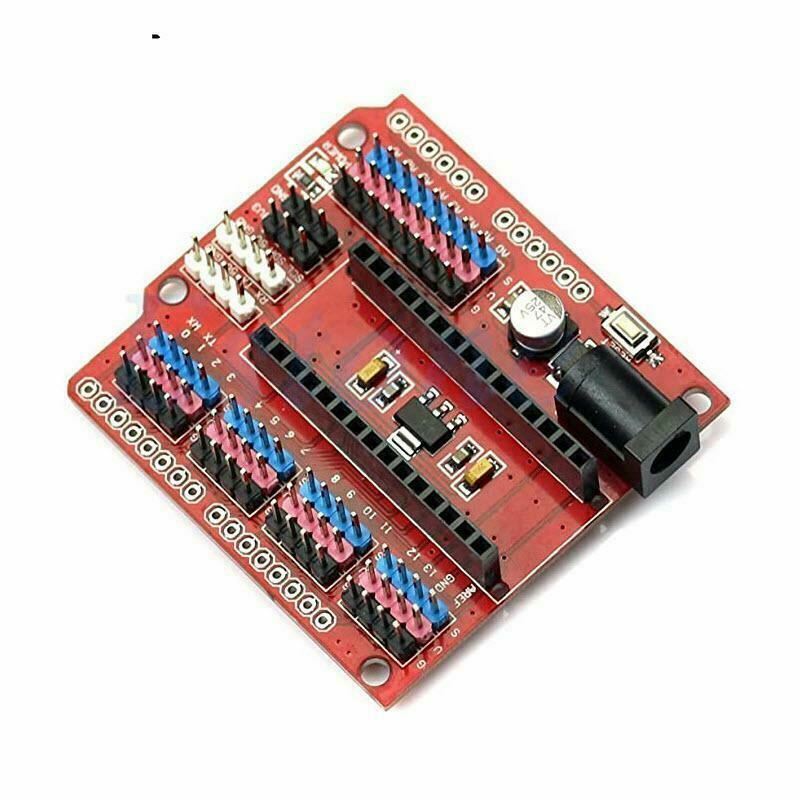

Arduino R1 Nano 3.0 Duemilanove 2009 Nano I/O Expansion Sensor Shield
Features :
Nano IO Expansion Shield is specifically designed to facilitate an easy connection between Nano and many other devices. In essence, it expands the Nano controller to link those devices in a simple and trouble free manner. It is a perfect companion of Nano breadboard and compatible with both Arduino Nano v2.x and v3.x.This expansion shield provides:
*14 I/O Pin (servo type with GND, power and signal)
*8 analog Pin with power output and GND
*6 PWM Pin
*1 Servo power input
*I2C expansion Pin
*AREF output
*3.3V output
